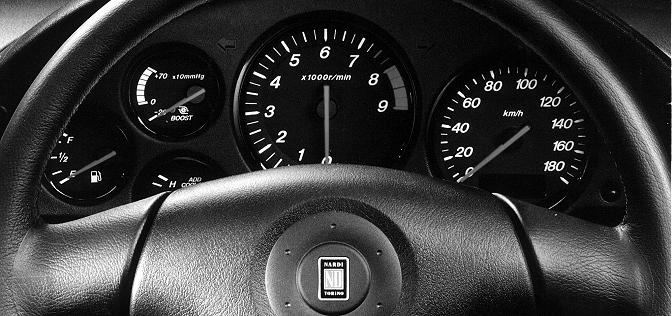

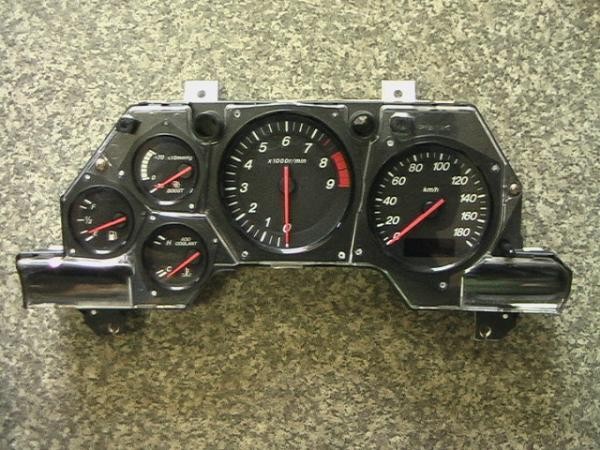

This is the often sought after 1999 OEM cluster, featuring the "6 o'clock tach" and factory boost gauge (in place of the previous oil pressure gauge). While this cluster is essentially 'plug and play,' it will require *slight* modification for the boost gauge to function. "It's very simple; just 2 wires are missing that need to be connected: (- ground) and (map sensor signal) - (GROUND WIRE) - find a bolt thats grounded to the chassis and run a wire from there to the small bolt in the back of your 99-spec cluster that is marked [ADD GROUND HERE] in this picture: Ground - (MAP SENSOR SIGNAL WIRE) - find the map ->(pressure) sensor signal wire on the far right harness connector on the ECU. The wire is green with a yellow stripe and has silver dots. Pressure Sensor Signal Wire Next, splice a new wire to it and run it to the back of the gauge cluster and connect it to the small bolt that is labeled MB or [ADD MAP SENSOR SIGNAL HERE] in this picture: Map Sensor Signal - quoted from KINETIK_FD3S Price: $550 Shipped |
 |
